High Torque Reduction Gear Shaft with Accurate Positioning for Transmission
High torque reduction gear shaft is a special gear shaft design used to provide a large output torque while maintaining a small output speed.
This type of gear shaft is widely used in various machinery and equipment, especially in applications that require large torque output, such as robots, automation equipment, transportation systems, wind power generation and other heavy machinery
The application of high torque reduction gear
1. Industrial robots: used for joint drive, providing precise movement and strong gripping force.
2. Transportation systems: used to drive wheels or working devices in cranes, excavators and loaders.
3. Wind power generation: on the low-speed shaft of the wind turbine, the slow rotation of the blades is converted into the speed required by the high-speed generator.
4. Heavy machinery: used to drive various working devices in construction, mining and agricultural machinery.
Characteristics of gear shaft:
1. Material selection takes into account fatigue resistance, wear resistance and corrosion resistance.
2. In order to achieve a high reduction ratio, multi-stage gear reduction is usually used, and each stage of gear is designed to withstand high torque.
3. High-torque gear shafts are usually equipped with an efficient lubrication system to ensure reliable lubrication of gears and bearings under high speed and heavy load conditions.
4. Gears and shafts are properly heat treated, such as quenching and tempering, to improve their hardness and wear resistance
The design of the gear shaft
Gears are machined with high precision to ensure smooth meshing and efficiency.
Gears may be helical, worm, or other special tooth designs to optimize torque transfer and reduce noise.
High Torque Reduction Gear Shaft
| Products |
High Torque Reduction Gear Shaft with Accurate Positioning for Transmission |
| Material |
Alloy steel, 42CrMo,42CrMn,35CrMn,45S |
| Shape |
Helical gear, Cylindrical gear |
| Manufacturing process |
Forging |
| Teeth Accuracy Grade |
ISO 5-8 Grade |
| Heat Treatment |
Normalizing & tempering |
| Application |
Reducer, ball mill, mine elevator, crusher |
DINGSCO-We are committed to being the best high-precision spiral bevel gears supplier.
1. 30 years experience in manufacturing industrial gears.
2. Main products: spiral bevel gears, high reduction ratios, hypoid gears and cylindrical gears.
3. In 2023, Hunan Dinghan New Material Technology Co., Ltd. was established as a specialized international export company business unit.
Product Tags:
|
|

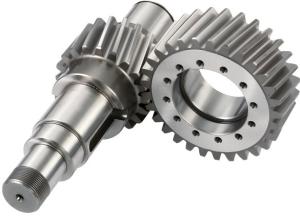

High Torque Reduction Gear Shaft with Accurate Positioning for Transmission Images
|
