45# Steel Mechanical Transmission Spur Gear Cylindrical Gear

Name: 45 Steel Mechanical Transmission Spur Gear Cylindrical Gear
Brand: SJ, DH
Price: 1 USD

Brand Name : SJ, DH

Certification : ISO

Place of Origin : Changsha, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : (sample order) 7 days

Packaging Details : According to customers' requests

Surface : Bright

Type : Gleason

Service : Customized

Teeth Accuracy Grade : ISO 6-7 Grade

Material : 20CrMnTi/20CrMo/20CrNiMo/18CrNiMo/38CrMoAl/42CrMo/40Cr/45#/PA66/416/410/304......

Heat Treatment : Carburization and quenching/Carbonitriding/High frequency/Quenched and tempered......

Contact Now

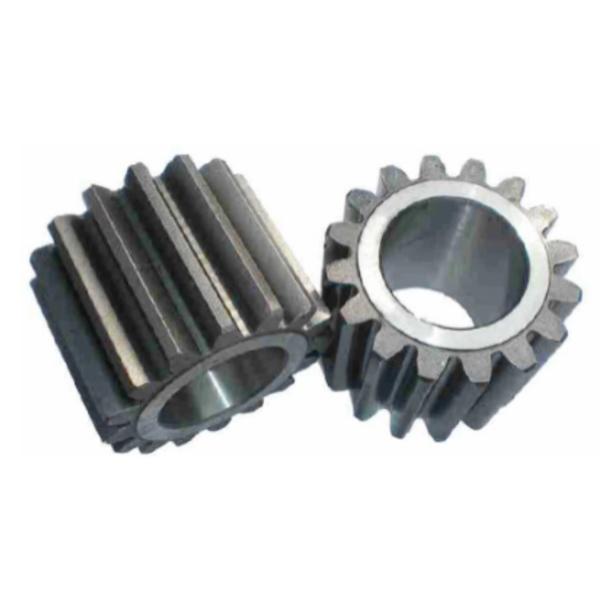

Products: 45# Steel mechanical transmission spur gear cylindrical gear

1. Spur gear is a type of cylindrical gear, often referred to as spur gear, which is mainly used in mechanical transmission. Its main feature is that the tooth line coincides with the central axis, and the tooth profile of the spur gear always remains straight with respect to the axis. Spur gears can rotate in both directions. In order to enable the gears to rotate in both directions, the tooth profiles on both sides of the gear teeth are composed of involute curved surfaces with the same shape and opposite directions.

2. The tooth surface of a spur gear is a straight line, so its tooth surface angle is zero degrees. The contact area of the tooth surface is relatively small, so the noise and axial load during transmission are also relatively large. In addition, the spur gear has a long tangential length of the tooth surface and a large force-bearing area, which can withstand greater loads, but is also more susceptible to wear.

Products	45# Steel mechanical transmission spur gear cylindrical gear
Service	Customized
Shape	Spiral bevel gear
Gear Teeth manufacturing	Turning/Milling/ Grinding
Module (M)	≤4
Teeth Accuracy Grade	ISO 6-7 Grade
Heat Treatment	Carburization and quenching/Carbonitriding/High frequency/Quenched and tempered......
Hardness	Hardened
